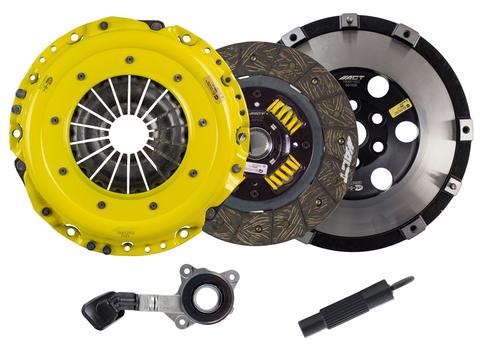

FF5-HDSS kit features ACT’s most popular Heavy Duty pressure plate and most popular street disc. ACT Heavy Duty pressure plates use exclusive diaphragm design to increase clamp load, reduce deflection and maximize clutch life. All diaphragms endure a four-stage, heat-treating process for unparalleled performance. ACT pressure plates have precision cover stampings to provide rigidity and consistency. ACT’s Performance Street discs feature premium organic materials with high copper content for better heat transfer and steel-backed lining for greater burst strength and durability. These discs have reduced marcel for faster shift action to complement ACT pressure plates, with increased strength and reliability.
Feel: Light to moderate pedal effort, smooth positive engagement, OE to mild gear rattle;
Life: Longer friction life, extended by ACT’s exclusive diaphragm design;
Quality: Carefully engineered, precisely assembled, accurately balanced, with premium organic friction materials for heat tolerance and reduced fade;
Recommended Use: Recommended for street and race use;
ACT Difference: 100% clamp load tested and dynamically computer balanced for smooth high RPM reliability;
Product Weight (lbs.)29.6
Disc TypeSprung Street Disc
Pressure Plate TypeHeavy Duty
Input Shaft Diameter (Inches)1
Torque Capacity Over OE35%
Torque Capacity (ft/lbs.)500
Disc Diameter (Inches)9.4
Disc Diameter (mm)240
ItemCodeDescHD/Perf Street Sprung
NOTE: Spring centered discs kits (SS & G6) to be used with the ACT flywheel only (kit includes 6001020 Streetlite Flywheel). Gear Rattle is expected when using the ACT single mass flywheel.
